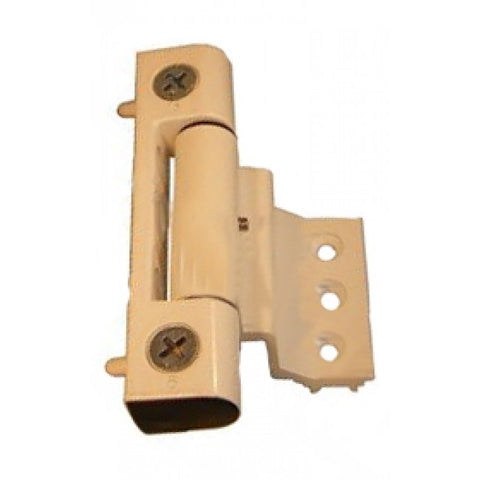

Pendulum Rebated Butt Hinge for Upvc doors

The rebated Pendulum hinge is particularly suitable for use on profile systems whose chamfer or ovolo feature renders the fixing of standard butt hinges difficult.

Adjustment is carried out by opening the door to 90 and rotating the twin adjustment screws until the desired amount of adjustment is achieved.

Versions available to suit 9mm and 13mm eurogroove positions in white or brown colours.

Features:

• 4mm lateral adjustment to ensure optimum cover
• Stainless steel hinge pin and concealed grub screw fixing
• Lateral Adjustment (mm): +/- 2
• Maximum Sash Weight (kg): 80 (3 Hinges)
• Hinge Components Zinc alloy to BS 1004 B
